Manufacture and sale of Tandemzylinder
Tandemzylinder
CAD-Datenbank / CAD-Anfrage
Bitte selektieren Sie die Hydraulikzylinder gemäß Ihren Anforderungen. Im weiteren Verlauf haben Sie die Möglichkeit den ausgewählten Zylinder oder eine noch weiter ergänzte Ausführung direkt als Anfrage zu senden.

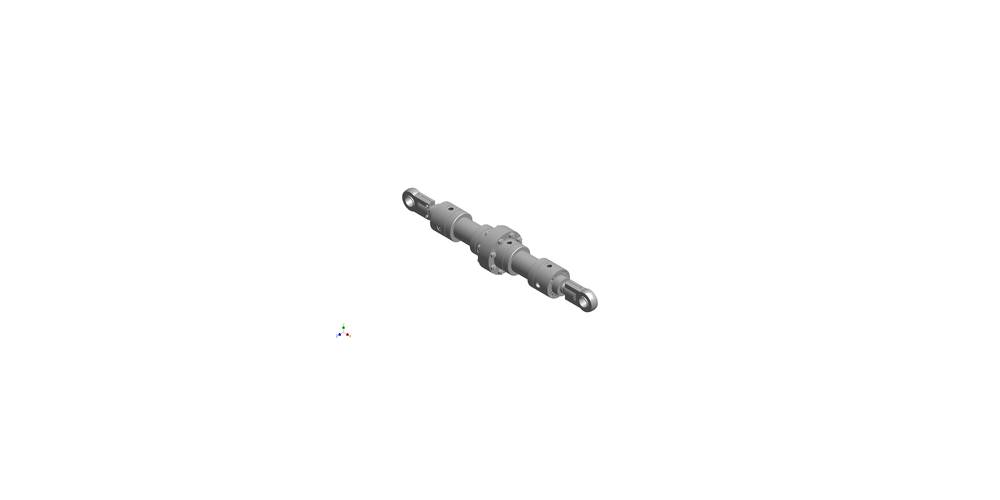

Zylinder-Details
| TYP | KST | KSTH | KSTV | BEA | BAA | DAE | DKO | MM | HUB | KNR | Eigenschaften |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RZ | 0 | 0 | 8 | 04 | 2 | 3 | 080 | 056 | 0100 | 0485 |
| Typenschlüssel | RZ.008.04.2.3-080-056-0100-0485 |
| Artikelnummer | 11006427 |
| Zylindertyp | RZ - Rundzylinder |
| Kolbenstange | 0 - einseitig |
| Kolbenstangenende hinten | 0 - Außengewinde |
| Kolbenstangenende vorne | 8 - Gelenkkopf |
| Befestigungsart | 04 - Flansch hinten |
| Bauart | 2 - doppeltwirkend |
| Dämpfung | 3 - Dämpfung beidseitig |
| Kolbendurchmesser | 080 |
| Kolbenstangendurchmesser | 056 |
| Hub | 0100 |
| Lfd. Nummer | 0485 |
| Eigenschaften / Beschreibung | Tandemzylinder (TD) |
You will be redirected to the global GVCN 3Ds.
If it is an existing cylinder replacement, please send a request to hps@hpsinternational.com or contact your sales representative.
If it is an existing cylinder replacement, please send a request to hps@hpsinternational.com or contact your sales representative.
Hydraulic cylinder with multiple pistons
- These hydraulic cylinders look normal on the outside, but on the inside our engineers achieved a brilliant performance. Through a smart construction, they realized different force-die stroke relationships with two or more pistons, all in one housing and with compact installation dimensions. The design of such cylinders needs specific information about the required motion sequence – contact us with your specifications and together we will find the ideal solution for your case.
- SERVICE:
- CAD Data Configurator
- We will gladly advise you on the design for your specific application.
- On request, we carry out an installation on site with subsequent hydraulic commissioning.
- Please do not hesitate to call us at + 49 (0) 711 / 34 29 99-0
- You can also use our contact form.
