• KA SERIES:
•

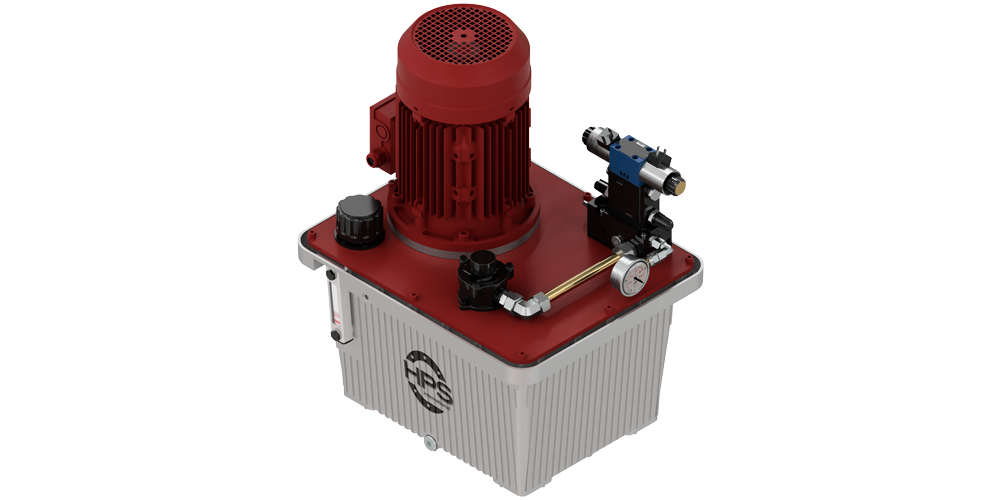

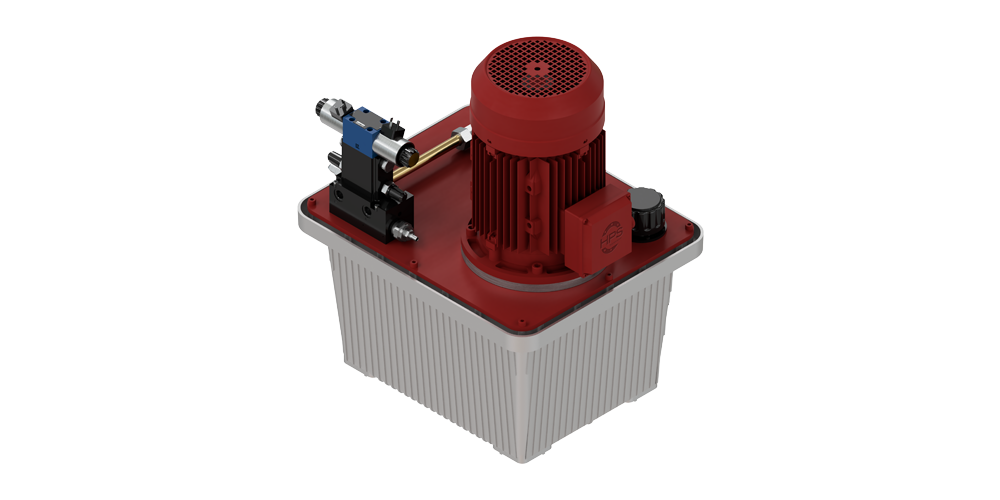

• HYDROPNEU develops high-performance hydraulic power units designed for a wide range of industrial applications. Our standardized Compact Hydraulic Power Unit (KA) Series is available in five sizes and has been developed to provide reliable performance and long service life in typical industrial processes.
•
• Thanks to its modular design and numerous optional features, each power unit can be quickly and cost-effectively adapted to the customer's specific requirements, including:
•
• •  Various valve configurations and number of consumers
• •  Cooling (oil-air, additional cooling unit) and tank heating
• •  Sensors for monitoring oil level, temperature and pressure
• •  Various filter types as well as ATEX versions for special requirements
• •  Custom-made terminal boxes or control cabinets
•
• Our power units are designed according to the IEC 60034-1 duty ratings, in compliance with the European standard EN 60034-1. This ensures precise load determination, reliable operation under demanding conditions and energy efficiency.
•
• TECHNICAL DATA:
•
• Each size is available in three versions:
•
• ➤  Standard (200 bar)
• ➤  HQ (160 bar, increased flow rate)
• ➤  Hp (250 bar)
•

• 	Power (elek.)	Working press. (max.)	Flow Rate (ca.)	Oil reservoir (nom.)
  	kW	bar	Ltr./min	Ltr.
  KA1	1,1	200	2	30
  KA2	2,2	200	4	30
  KA3	5,5	200	11,5	44
  KA4	7,5	200	15	70
  KA5	11	200	23,5	100
  KA2 HQ	2,2	160	5,5	30
  KA3 HQ	5,5	160	15	44
  KA4 HQ	7,5	160	20	70
  KA5 HQ	11	160	31,5	100
  KA1 Hp	1,1	250	1,5	30
  KA2 Hp	2,2	250	3,5	30
  KA3 Hp	5,5	250	9	44
  KA4 Hp	7,5	250	11,5	70
  KA5 Hp	11	250	20	100

•

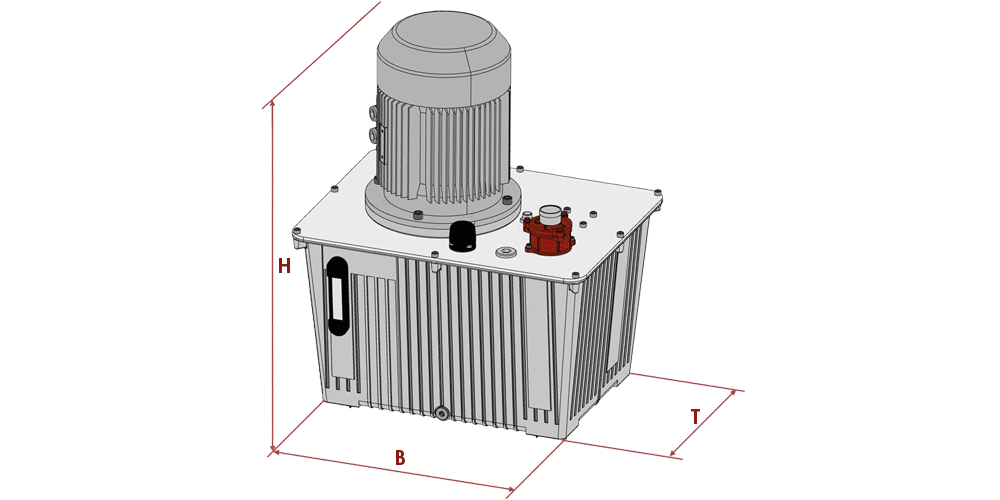

• 	B	T	H	Weight
  	mm	mm	mm	ca. kg
  KA1	491	341	556	30
  KA2	491	341	634	41
  KA3	525	424	720	78
  KA4	605	465	743	95
  KA5	680	500	1030	145

•
• *All dimensions apply to the power unit only.
• External dimensions change when optional components (valve block, etc.) are fitted.
• Weight is approximate, without oil filling.
•

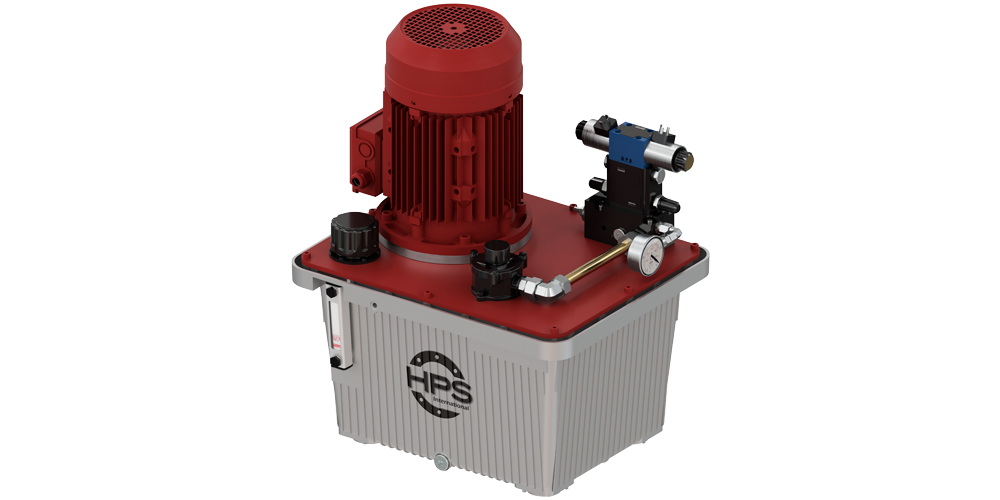

• EQUIPMENT:
•
• •  Electric motor: 4-pole, 400V, IE3, 1500 rpm
• •  Pump: Robust external gear pump
• •  Filter: Return line filter (10 μm) with visual contamination indicator
• •  Oil tank: with high heat dissipation capacity
• •  Sight glass for monitoring oil level and temperature
• •  Filler / breather filter
• •  Prepared for valve mounting (CETOP3 / NG06)
• •  Recommended fluid: HLP46 hydraulic mineral oil according to DIN 51524 Part 2
• •  Temperature range: Ideal 20°C ... 60°C
•
• OPTIONAL EQUIPMENT:
•

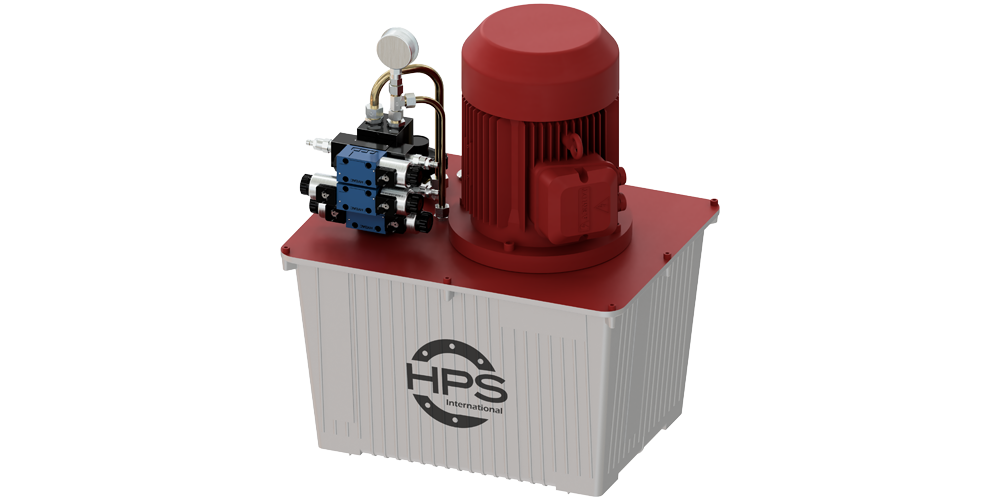

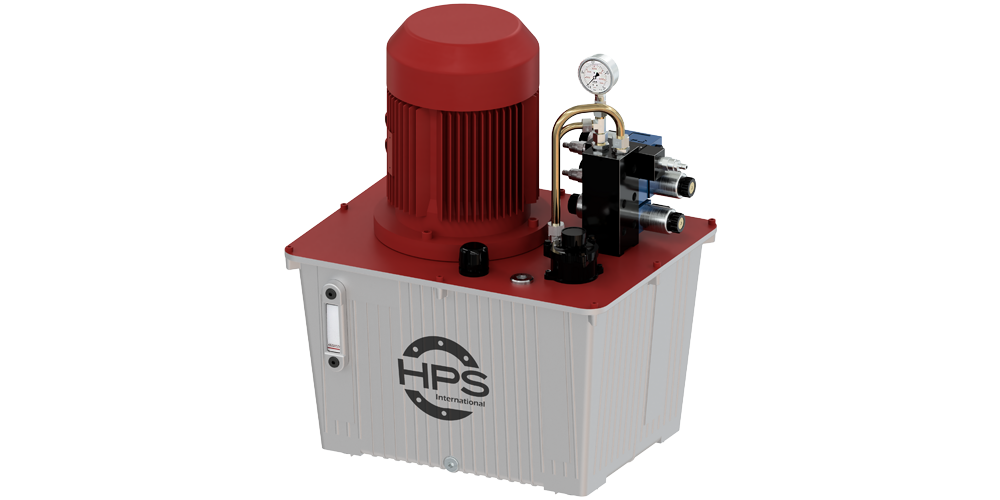

• Valve block:
•
• Up to 5 valve stations (CETOP3 / NG06)
• Allows the simultaneous operation of up to 5 independent cylinders, for example.
• Flexible valve configuration enables a wide range of functions, including:
•
• •  Various directional control valves (standard: 24 V or manual)
• •  Speed control
• •  Pressure reduction
• •  Load holding function
•
• Sensors and Measurement Technology:
•
• •  Pressure transmitter
• •  Flow measurement
• •  Level monitoring
• •  Temperature monitoring
•
• Electrical System:
•
• Wiring of all components with an electrical control cabinet available.
•
• Additional Functions:
•
• •  Motor control / protection
• •  Control elements for valve functions
• •  Signal lamps and indicators
• •  Preparation for PLC connection
•
• Further options make the Standard Hydraulic Power Units ready for your application:
•
• •  Robust trolley for workshop use
• •  Active cooling (continuous operation in warm environments)
• •  Tank heaters (only available in combination with steel tanks)
• •  Hydraulic accumulator, drip tray, pressure filter, …
• •  Quick-connect couplings for rapid hose connection
•

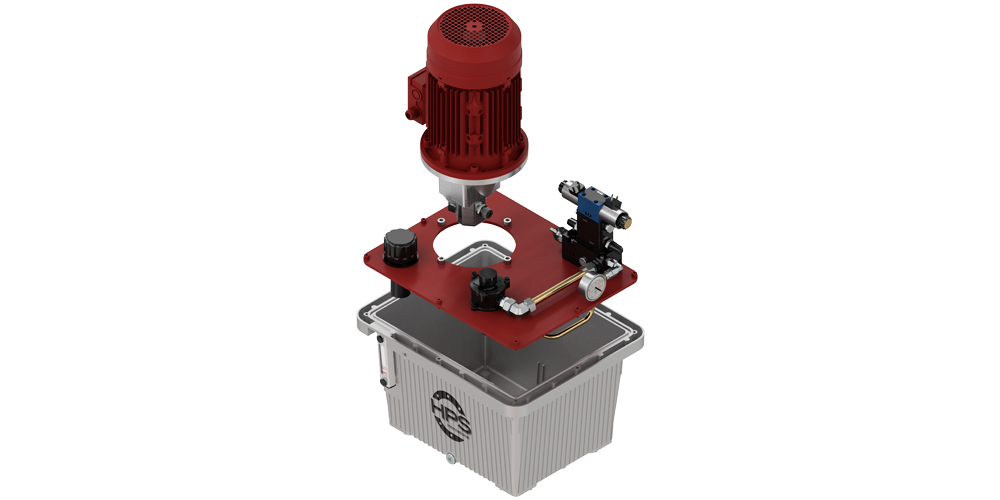

• SERVICE:
•
• We will be happy to advise you on the design for your specific application.
• On request, we carry out an installation on site with subsequent hydraulic commissioning.
•
